Why Is Graphite a Good Material for Electrodes?

An electrode does much more than carry electricity. Depending on the process, it may have to withstand intense heat, repeated electrical discharges, chemical exposure, mechanical stress, and strict dimensional requirements at the same time.

This is where graphite becomes particularly useful.

Graphite is not necessarily the best conductor, the strongest material, or the most chemically resistant material in every situation. Its value comes from something more practical: a combination of electrical conductivity, thermal stability, chemical resistance, low density, and machinability that can meet several electrode requirements at once.

What Does an Electrode Actually Need to Do?

The basic function of an electrode is simple: it provides a path for electrical current to enter or leave a system. The material requirements, however, can be much more complicated.

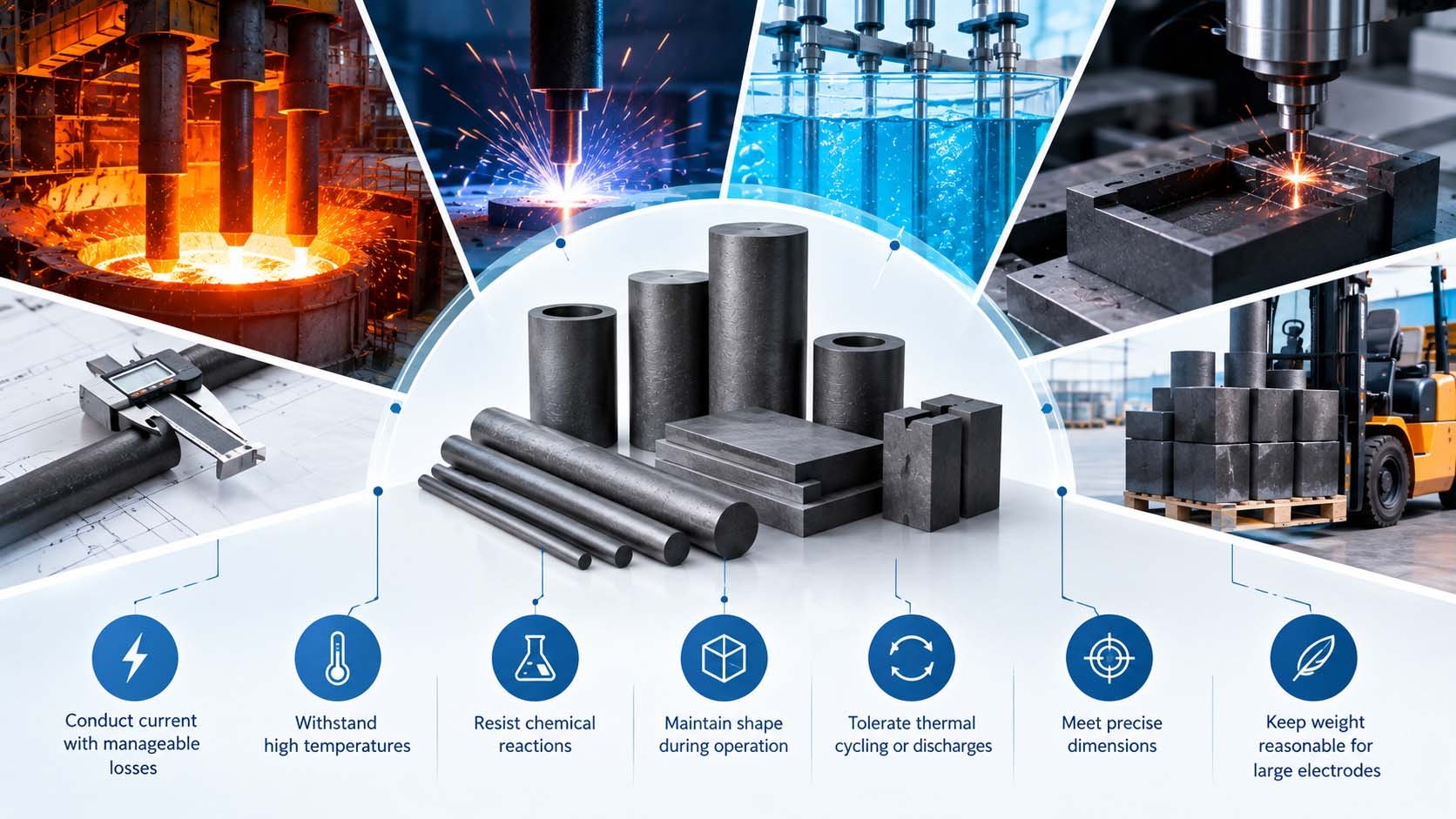

An electrode may need to:

· Conduct current with manageable electrical losses

· Remain stable when exposed to high temperatures

· Resist unwanted chemical reactions

· Maintain its shape during operation

· Tolerate thermal cycling or electrical discharge

· Be manufactured to the required dimensions

· Avoid excessive weight when large electrodes are involved

Different applications place different levels of importance on these properties. A large furnace electrode, for example, operates under very different conditions from a small EDM tool used to machine a precision cavity. Graphite is useful because its properties can address several of these requirements simultaneously.

The Advantage Is the Combination, Not One Single Property

Graphite becomes particularly useful when several electrode requirements appear at the same time.

Thermal stability

Many electrode processes generate substantial heat. Graphite can operate at very high temperatures without melting in the same way as conventional metals. Its behavior at elevated temperatures makes it valuable in applications involving intense thermal conditions.

This is one reason graphite is widely associated with high-temperature industrial electrodes. Rather than treating temperature resistance as an isolated benefit, it is more useful to view it as part of the material’s overall performance balance.

Chemical resistance

An electrode can come into contact with electrolytes, molten materials, gases, or other reactive substances. Graphite resists many forms of chemical attack, although its suitability depends on the specific environment.

This relative chemical stability can help reduce unwanted reactions and material degradation. It is particularly relevant in electrochemical applications, where the material must participate in electrical processes without introducing excessive additional reactions.

Graphite is not chemically inert under every condition. Strong oxidizing environments and certain high-temperature atmospheres can cause oxidation, so the operating environment must always be considered.

Low density

Graphite has a relatively low density compared with many metallic electrode materials.

This becomes increasingly relevant as dimensions increase. A large component made from a dense metal can become difficult to handle and may require more substantial fixtures and support structures. Graphite can provide a lighter alternative while still providing the required electrical function.

For large or complex geometries, weight can therefore become a practical design consideration rather than simply a material property.

Machinability

One of graphite’s most distinctive advantages is its ability to be machined into detailed shapes.

Electrodes are not always simple cylinders or flat plates. Some processes require cavities, ribs, narrow sections, sharp corners, or other complex geometries. Graphite can be processed into these forms with suitable machining techniques.

This characteristic is especially important in EDM, where the geometry of the electrode directly influences the geometry produced on the workpiece.

Graphite vs. Metal Electrode Materials

Graphite should not be considered a universal replacement for metallic electrode materials. Copper, copper alloys, copper-tungsten, and other materials can be appropriate for specific applications. The correct choice depends on electrical requirements, geometry, temperature, chemical conditions, machining needs, and expected wear.

A simplified comparison illustrates why graphite remains attractive in some applications:

The point is not that graphite is better in every category. Its practical advantage comes from the balance between properties.

A material with excellent electrical conductivity may not offer the same machinability or weight characteristics. A material with greater toughness may behave differently under extreme heat. Electrode selection is therefore a matter of matching material properties to process requirements.

Where Are Graphite Electrodes Used?

The term “graphite electrode” covers several different applications, and the requirements are not identical in each one.

Electric arc furnaces

Large graphite electrodes can carry high electrical currents and generate the intense heat required for electric arc furnace operations. The combination of electrical conductivity and high-temperature capability is particularly important in this environment.

Electrolysis

Graphite can be used as an anode or cathode in certain electrochemical processes. Its electrical conductivity and resistance to many chemical environments make it useful where the electrode must remain functional while an electrical current drives a chemical reaction.

EDM

Graphite is widely used for EDM electrodes because the material can combine electrical conductivity with machinability and thermal stability.

Is Graphite Always the Right Electrode Material?

No. One of the most important considerations in material selection is recognizing where graphite has limitations.

Graphite is relatively brittle compared with many metals. Thin sections and delicate features therefore require careful design and handling. Machining graphite also produces fine particles, making appropriate dust collection and workshop controls important.

Graphite can also oxidize at elevated temperatures when oxygen is present. Applications involving high temperatures must therefore consider the atmosphere surrounding the electrode.

In addition, graphite’s performance depends strongly on grade. Density, grain structure, strength, electrical resistivity, and machining behavior can vary between grades.

These factors mean that choosing “graphite” is only the beginning of the material selection process.

Conclusion

Graphite is a good material for electrodes because its value comes from balance.

An electrode often needs to do several things at once: conduct electricity, tolerate heat, remain stable in its working environment, and maintain a useful shape. Graphite can address these requirements through a combination of electrical conductivity, thermal stability, chemical resistance, low density, and machinability.

Its advantages become particularly clear in applications such as EDM, where electrode geometry, electrical behavior, thermal performance, and manufacturing efficiency all interact.

The important question is therefore not simply whether graphite is a good electrode material. It is which graphite grade and electrode design are appropriate for the specific process.

When electrical, thermal, chemical, geometric, and manufacturing requirements are considered together, graphite can provide a practical material solution for demanding electrode applications.
