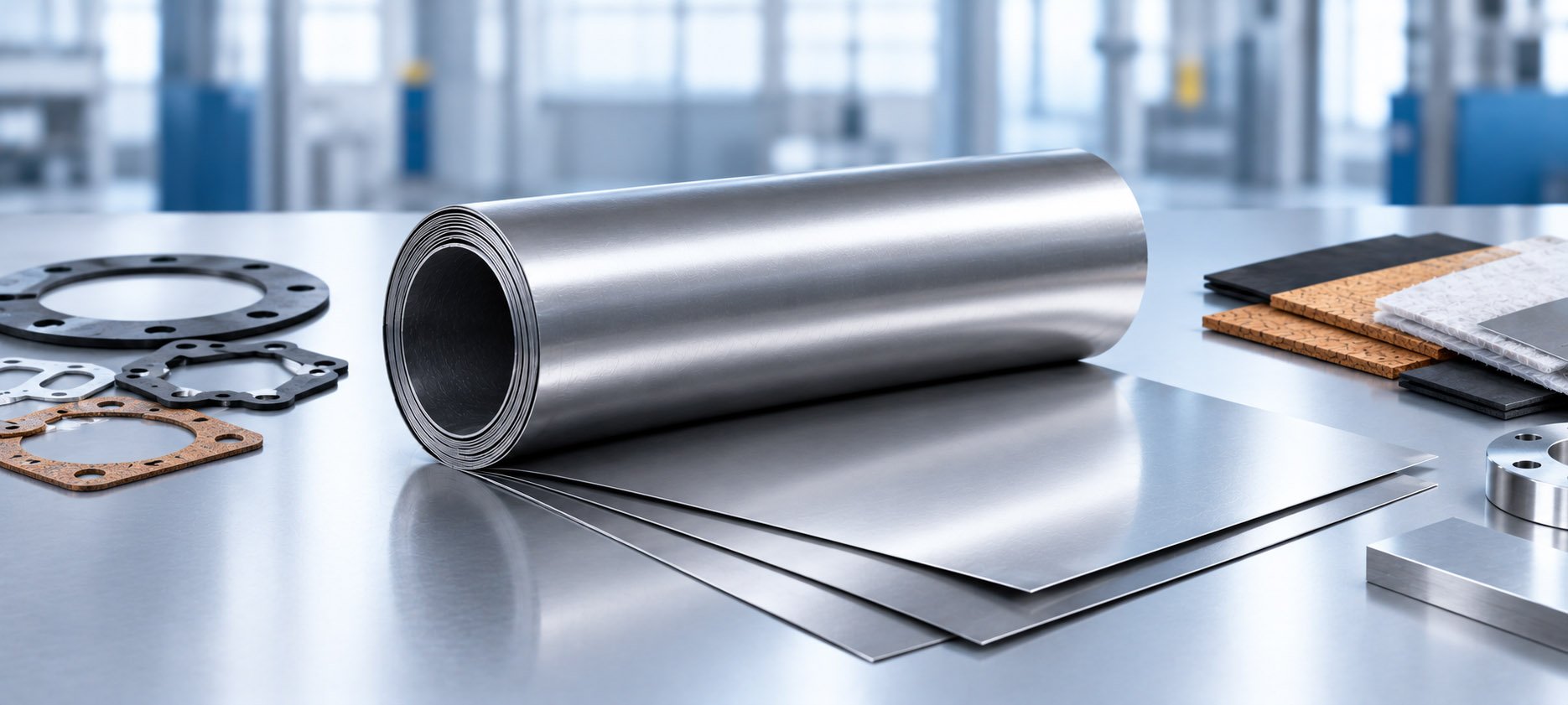

Graphite Foil vs. Traditional Materials: A Comparison

Graphite Foil is a flexible, high-temperature material often used where heat transfer, sealing, and chemical resistance matter. Compared with traditional materials such as rubber, cork, paper-based gasket sheet, metals, and some polymer films, it offers a different balance of performance: less cushioning than soft elastomers, but greater thermal stability and useful thermal conductivity. Understanding these tradeoffs helps engineers, buyers, and maintenance teams choose the right material for demanding applications.

What makes Graphite Foil different?

Graphite Foil is typically made from expanded graphite that is compressed into thin, flexible sheets. Its layered carbon structure gives it a combination of properties that many traditional materials struggle to provide: it can conform to surfaces, withstand high temperatures, and transfer heat efficiently. This makes it useful in applications where a material must seal, spread heat, or remain stable under demanding conditions.

Traditional materials are often selected because they are familiar, affordable, or easy to cut and install. Rubber seals, fiber sheets, and polymer films can work well in moderate environments. The difference becomes more important when heat, pressure, chemical exposure, or long-term stability matters more than basic fit and flexibility.

Performance advantages in heat and sealing

One of the important graphite uses is thermal management. Because graphite has good thermal conductivity, Graphite Foil can help distribute heat across a surface, reduce hot spots, and support more consistent system performance. This can be valuable in electronics, furnace components, heat shields, and industrial equipment where uneven heat distribution may affect component performance.

As a sealing material, Graphite Foil also performs well in many high-temperature environments. Unlike rubber and many plastics, graphite can maintain its structure at temperatures where many organic materials begin to soften, melt, or thermally degrade. It can compress enough to fill small surface imperfections, which helps create a reliable seal when properly specified and installed.

Key strengths include:

· High heat tolerance: suitable for demanding thermal environments where many organic materials may fail.

· Good conformability: flexible enough to fit irregular surfaces without being as rigid as metal.

· Chemical resistance: useful around many aggressive media, depending on the application.

· Thermal conductivity: helps transfer or spread heat rather than trapping it.

· Service stability: can remain functional in conditions where softer sealing materials may experience faster thermal aging.

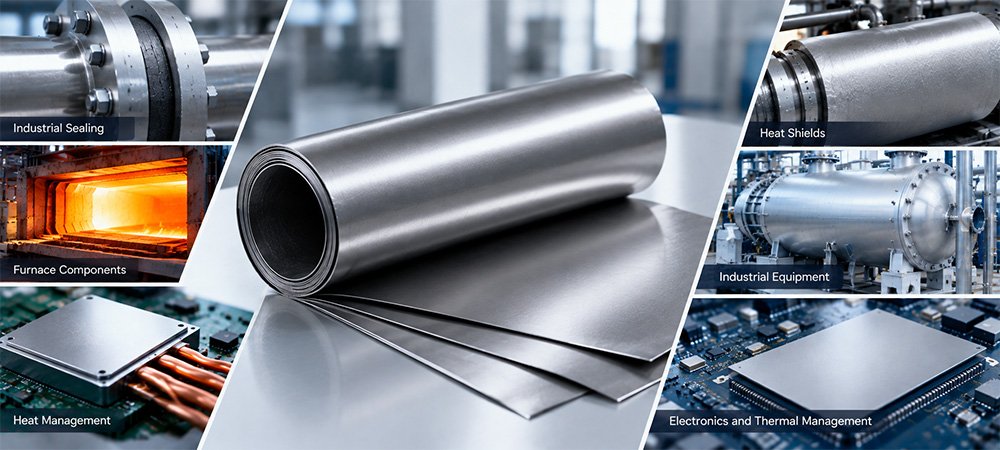

Applications of Graphite Foil

Graphite Foil is used in applications where a combination of flexibility, sealing performance, thermal stability, and heat transfer is required. Its properties make it suitable for a range of industrial environments where conventional materials may face limitations.

Common applications include:

· Industrial sealing: used for gaskets and sealing components where high-temperature stability and conformability are important.

· Furnace components: suitable for high-temperature equipment and components exposed to demanding thermal conditions.

· Heat management: used in applications where heat needs to be distributed or transferred across a surface to help reduce localized hot spots.

· Heat shields: can be used as a flexible material in thermal protection applications where resistance to elevated temperatures is required.

· Industrial equipment: applicable to equipment where sealing, thermal performance, and resistance to demanding operating conditions need to be considered together.

· Electronics and thermal management: useful in selected applications where flexible heat-spreading materials are required.

Where traditional materials still make sense

Graphite Foil is not automatically the best choice for every job. Traditional materials can be more practical when the application is low temperature, low pressure, or cost-sensitive. Rubber, for example, may provide better elastic recovery in applications that require repeated movement or vibration absorption. Cork or fiber materials may be sufficient for basic sealing where heat and chemical exposure are limited.

Selection should be based on the operating environment, not just the material name. A simple gasket in a mild setting may not need graphite’s performance advantages. On the other hand, using a material that is not suitable for a demanding system can lead to leaks, downtime, or premature maintenance.

Choosing between Graphite Foil and conventional options

The right choice depends on what the material must do over time. If the main challenge is heat, thermal transfer, chemical exposure, or dimensional stability, Graphite Foil may be a suitable option. If the main need is low-cost cushioning, high elasticity, or basic sealing in mild service, a traditional material may be enough.

Before choosing, review:

1. Maximum and normal operating temperature: Consider both the normal working temperature and any temperature peaks the material may experience during operation.

2. Pressure and compression requirements: Check the operating pressure and the level of compression needed for the material to maintain effective contact and sealing performance.

3. Exposure to chemicals, steam, oils, or gases: Identify the actual media in contact with the material and verify that the selected material is suitable for the service environment.

4. Need for thermal conductivity or insulation: Determine whether the material needs to transfer and distribute heat or provide thermal separation between components.

5. Surface finish, flange condition, and installation method: Consider the mating surface, flange condition, available compression, and installation process, as these factors can affect sealing performance.

6. Expected service life and maintenance access: Consider how long the material needs to remain functional and how easily it can be inspected, replaced, or maintained during service.

The practical takeaway

Graphite Foil stands out when traditional materials reach their limits. Its combination of flexibility, thermal conductivity, and high-temperature stability makes it a useful option for sealing and heat-management applications. Traditional materials still have a place, but in demanding environments, Graphite Foil can offer performance advantages that conventional materials may not provide.
