Graphite bipolar plate

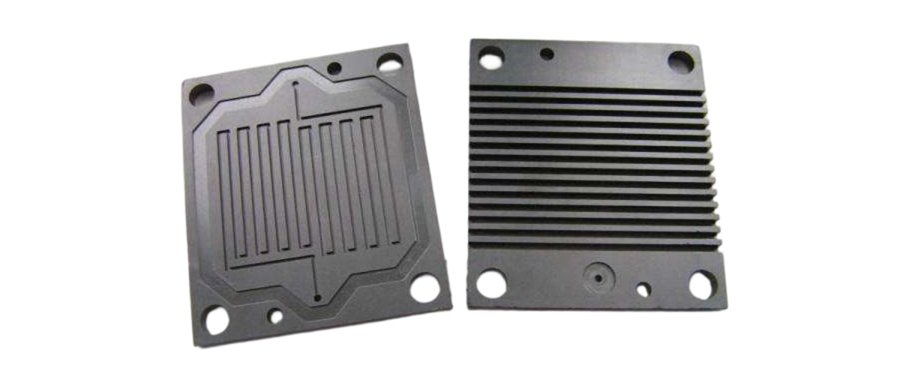

_0000_timg

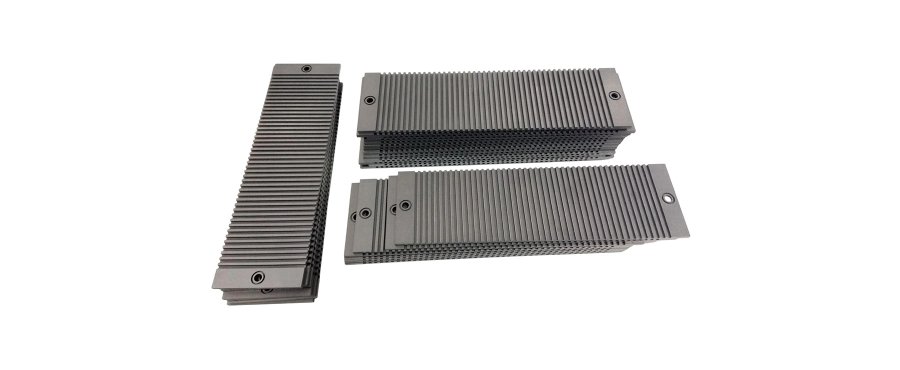

_0001_P60615-103550

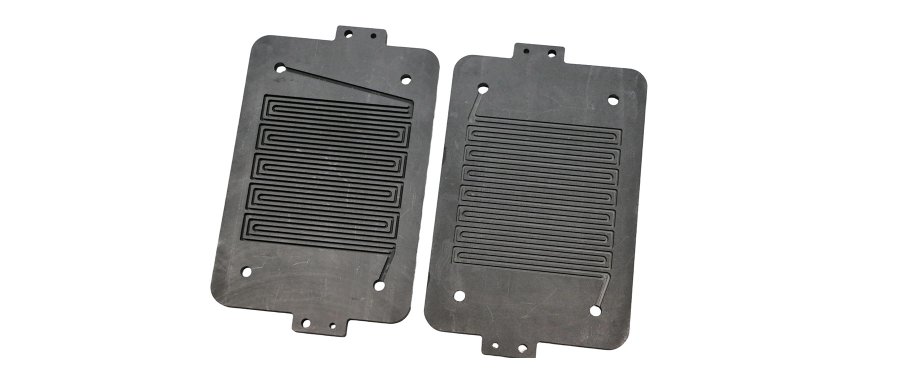

_0002_IMG_0738

Graphite bipolar plates, also called graphite current collecting plates or graphite separa ting plates, are key parts of fuel cell, and play roles of gas flow channel to avoid mixture of different gas and establishes electric current paths.  It acts as both a conductor and a divider: distributing reactant gases (hydrogen and air/oxygen) via its flow channels, collecting electrical current from the electrochemical reaction, physically separating individual cells in a stack, and providing structural support.


  • Precision-processed with a uniform graphite microstructure to minimize contact resistance—eliminating voltage drops and energy loss, a common issue with low-grade bipolar plates that reduces stack efficiency.

  • Densified via impregnation and precision sealing grooves to prevent reactant leakage and cross-contamination between cells, solving the critical problem of system performance degradation and safety risks from gas seepage.

  • Formulated to withstand corrosive environments (e.g., acidic electrolytes in PEM fuel cells, alkaline solutions in electrolyzers) without oxidation or degradation, avoiding plate thinning and premature stack failure.

  • Optimized thermal conductivity efficiently dissipates heat generated during electrochemical reactions, preventing overheating and thermal warping— a major cause of stack misalignment and shortened service life.

  • Low density reduces overall stack weight, while reinforced graphite matrix resists bending and compression under stack clamping pressure—avoiding structural fracture during installation and operation.

inquiry now add to cart

Share:

Contact Us

Applications

  • Fuel Cell Systems


Inquiry Now

product Name: Graphite bipolar plate
